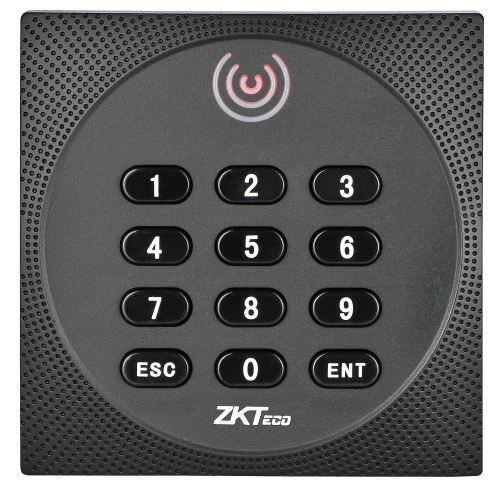

ZKTeco KR612E 125 kHz EM Reader with Keypad
The ZKTeco KR612E is a square external reader and keypad for systems using 125 kHz EM proximity credentials. It gives you card and PIN operation from one unit, making it a useful choice for doors where you want an access reader with simple keypad backup or dual authentication options. With Wiegand 26/34-bit output, 6-14 V DC supply, IP64 protection, external LED/buzzer control and an 86 x 86 x 20 mm housing, it is easy to fit on standard door entry points and integrate with compatible access controllers.
Key features:
- 125 kHz EM proximity reader with keypad
- Supports card, PIN and combined access workflows
- Wiegand 26 / 34-bit output with PIN output support
- Read distance up to 10 cm depending on card and environment
- 6-14 V DC supply with maximum 70 mA current draw
- IP64 housing for indoor or protected outdoor use
- External LED and buzzer control
- 86 x 86 x 20 mm body with -10 degrees C to 70 degrees C operating range
Category
- Readers
Manufacturer
- ZKTeco
Product Type
- Reader
