Ajax Superior MegaHub

Superior MegaHub is the flagship hybrid control panel for enterprise scale projects where standard systems simply cannot cope. It combines Ajax’s wired Fibra technology with wireless Jeweller, TurboWings, and VoRF radios, giving you a single platform that can support up to 999 devices and 100 security groups. It is built for large commercial estates, complex multi building sites, and any installation where reliability and scale are non negotiable.

All communication modules are built in. You get Ethernet, Wi Fi, and two SIM cards with 2G and LTE, with automatic switching to keep the hub online if one channel drops. The radio supports long range encrypted communication, while Fibra enables wired runs up to 2,000 metres without needing line extenders. You can build lines in radial, ring, or tree topology, giving you flexibility when designing cabling for demanding locations.

The hub handles photo verification with MotionCam devices across alarms, tampers, magnetometer events, scenarios, scheduled checks, masking attempts, or on demand. Automation is extensive, with up to 100 scenarios that can trigger on alarms, schedules, arming, Button presses, LightSwitch actions, or environmental readings such as temperature, humidity, or CO2.

Sabotage protection covers tamper detection, short circuit monitoring, instant line break detection, jamming resistance, and device authentication. Ring topology on Fibra lines allows a broken cable to split into two functioning beams, so devices keep working even under physical damage.

Adding the MegaHub to a system takes seconds with a QR code. The hub can auto scan Fibra lines and enrol up to 100 wired devices in minutes. Installers get local or remote configuration, power consumption tests, and automatic synchronisation with monitoring stations. The event log holds up to 1,000 events in on board memory.

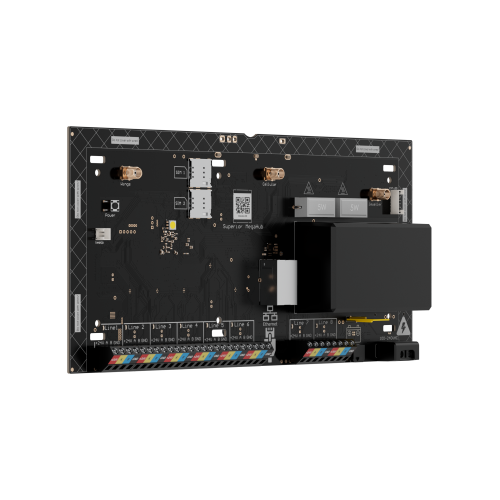

Power is built in with a 100 to 240 volt AC supply and a 24 volt Fibra line supply powering connected devices. The hub can run for up to 60 hours on a 12 volt 18 amp hour backup battery. It ships either in the Case E enclosure or as a board ready for use in compatible Ajax casings.

• Hybrid control panel for enterprise scale sites
• Supports up to 999 devices and up to 10 range extenders
• Wired Fibra and wireless Jeweller, TurboWings, and VoRF radios
• Ethernet, Wi Fi, and dual SIM (2G or LTE) with instant switching
• Up to 8 Fibra lines with radial, ring, or tree topology
• Photo verification across alarms, tampers, scenarios, and more
• Up to 100 automation scenarios
• Sabotage detection for line breaks, short circuits, and jamming
• Up to 60 hours on a 12 volt 18 amp hour backup battery
• Event log up to 1,000 entries
• Case or board versions available, Grade 3 certified
