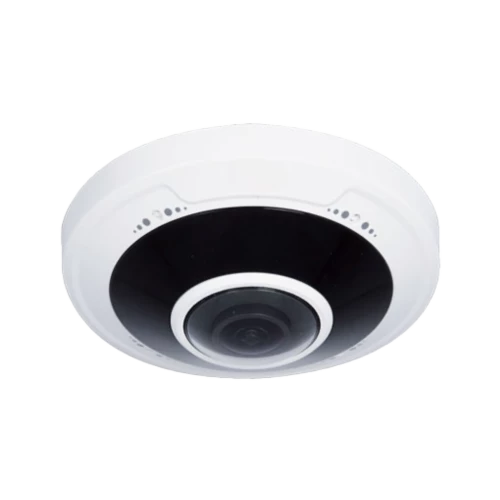

Ultra Fisheye Dome
IPC86CEB-AF18KC-I0
Key Features:
Exceptional Image Quality: Equipped with a 12MP, 1/1.7’’ CMOS sensor, this camera delivers high-resolution imagery up to 4000*3000, ensuring detailed surveillance coverage.
Comprehensive Viewing Angles: Features an ultra-wide-angle lens providing a full 360° panoramic image, ideal for extensive area surveillance.
Enhanced Night Vision: Embedded infrared light offers 360° fill-in light up to 15m (49ft), enabling clear night-time monitoring.
Versatile Decoding Modes: Supports both software and hardware decoding modes, offering interactive dynamic views for different surveillance needs.
Intelligent Analytics: Includes heatmap technology for real-time movement tracking and built-in microphone & speaker for two-way audio communication.
Durable Design: Boasts IK10 vandal resistance and IP67 protection, making it suitable for challenging environments.
Flexible Storage: Supports up to 256GB Micro SD card for ample on-device storage.
Camera Specifications:
Sensor: Utilises a 12.0 megapixel, progressive scan CMOS sensor for superior image quality.
Minimum Illumination: Achieves clear images in low-light conditions with 0.03Lux (F2.0, AGC ON) illumination.
Lens: Comes with a 1.8mm@F2.0 lens, providing a 360° field of view for comprehensive coverage.
Video Capabilities:
Compression Formats: Supports Ultra265, H.265, H.264, and MJPEG for efficient bandwidth and storage usage.
Stream Flexibility: Offers triple streams, with the main stream supporting up to 12MP resolution at 20fps for detailed surveillance footage.
Intelligent Features:
Smart Intrusion Prevention: Enhances security with cross line, intrusion detection capabilities.
Statistical Analysis: Features a heatmap for analysing traffic patterns, aiding in crowd management and other applications.
Network and Integration:
Protocols and Compatibility: Ensures seamless integration into existing systems with support for various network protocols and ONVIF conformance.
Enhanced Security Measures: Includes robust security protocols to safeguard data and prevent unauthorised access.
Installation and Usage:
Flexible Mounting Options: Suitable for table, wall, and ceiling installations, accommodating various surveillance scenarios.
Interactive Viewing Options: Provides multiple decoding and display modes for customised viewing experiences.
The 12MP Ultra HD Infrared Vandal-resistant Fisheye Fixed Dome Camera is a high-end surveillance solution designed for areas requiring detailed panoramic views. Its cutting-edge features and robust build quality make it an ideal choice for high-security environments, large open spaces, and critical infrastructure monitoring.
IPC86CEB-AF18KC-I0
Key Features:
Exceptional Image Quality: Equipped with a 12MP, 1/1.7’’ CMOS sensor, this camera delivers high-resolution imagery up to 4000*3000, ensuring detailed surveillance coverage.
Comprehensive Viewing Angles: Features an ultra-wide-angle lens providing a full 360° panoramic image, ideal for extensive area surveillance.
Enhanced Night Vision: Embedded infrared light offers 360° fill-in light up to 15m (49ft), enabling clear night-time monitoring.
Versatile Decoding Modes: Supports both software and hardware decoding modes, offering interactive dynamic views for different surveillance needs.
Intelligent Analytics: Includes heatmap technology for real-time movement tracking and built-in microphone & speaker for two-way audio communication.
Durable Design: Boasts IK10 vandal resistance and IP67 protection, making it suitable for challenging environments.
Flexible Storage: Supports up to 256GB Micro SD card for ample on-device storage.
Camera Specifications:
Sensor: Utilises a 12.0 megapixel, progressive scan CMOS sensor for superior image quality.
Minimum Illumination: Achieves clear images in low-light conditions with 0.03Lux (F2.0, AGC ON) illumination.
Lens: Comes with a 1.8mm@F2.0 lens, providing a 360° field of view for comprehensive coverage.
Video Capabilities:
Compression Formats: Supports Ultra265, H.265, H.264, and MJPEG for efficient bandwidth and storage usage.
Stream Flexibility: Offers triple streams, with the main stream supporting up to 12MP resolution at 20fps for detailed surveillance footage.
Intelligent Features:
Smart Intrusion Prevention: Enhances security with cross line, intrusion detection capabilities.
Statistical Analysis: Features a heatmap for analysing traffic patterns, aiding in crowd management and other applications.
Network and Integration:
Protocols and Compatibility: Ensures seamless integration into existing systems with support for various network protocols and ONVIF conformance.
Enhanced Security Measures: Includes robust security protocols to safeguard data and prevent unauthorised access.
Installation and Usage:
Flexible Mounting Options: Suitable for table, wall, and ceiling installations, accommodating various surveillance scenarios.
Interactive Viewing Options: Provides multiple decoding and display modes for customised viewing experiences.
The 12MP Ultra HD Infrared Vandal-resistant Fisheye Fixed Dome Camera is a high-end surveillance solution designed for areas requiring detailed panoramic views. Its cutting-edge features and robust build quality make it an ideal choice for high-security environments, large open spaces, and critical infrastructure monitoring.
Camera Shape
- Fisheye
Category
- IP Cameras
Colour
- White
Lens
- 1.8mm
Manufacturer
- Uniview
Megapixel
- 12MP
Product Type
- IP Camera
Range
- Pro
Technology
- Ai
- Dewarp
- Heatmap
- IK10
- IP67
- Two Way Audio
Wired / Wireless
- Wired
