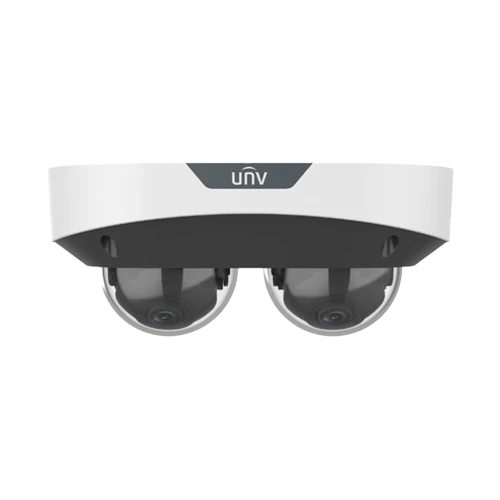

Double Dome
IPC3224SS-ADF28K-I1
Key Features:
Dual 4MP Cameras: Incorporates two 4MP, 1/3.0" CMOS sensors in a single device for comprehensive coverage.
Multiple Resolutions: Supports up to 4MP at 25/20fps for high-resolution video capture.
Intelligent Perimeter Protection: Both channels are equipped with advanced detection capabilities including cross line, intrusion, and area entry/exit monitoring.
Target Classification: Reduces false alarms by accurately distinguishing between human, motor vehicle, and non-motor vehicle movements.
People Flow Counting: Available on Channel 1, enabling crowd density monitoring and people counting for statistical analysis.
High Dynamic Range: 130dB WDR offers clear imaging in varied light conditions.
Audio Capabilities: Features built-in microphones for audio recording.
Storage Options: Supports up to 256GB Micro SD cards for extensive local storage.
Durability: Boasts IP67 weatherproof and IK10 vandal resistance ratings, suitable for challenging environments.
Flexible Powering: Can be powered via DC12V or PoE (IEEE 802.3af) for easy installation.
Camera Specifications:
Sensors: Dual 1/3.0", 4.0 megapixel, progressive scan CMOS sensors for detailed imagery.
Low-Light Performance: Colour sensitivity as low as 0.002 lux (F1.6, AGC ON) ensures performance in near-darkness.
Wide Dynamic Range: 130dB WDR for balancing contrasts in varied lighting.
Lens Choices: Available with 2.8mm or 4.0mm lenses, providing wide or narrow fields of view.
Video and Imaging:
Advanced Compression: Offers Ultra 265, H.265, H.264, and MJPEG codecs for efficient storage and bandwidth usage.
Customisable Viewing: Allows up to 8 OSDs and 4 privacy masks per channel for tailored monitoring and recording.
Network and Integration:
Protocols and Compatibility: Supports a wide range of protocols for integration into existing systems.
Storage Flexibility: Edge storage via Micro SD cards and network storage options for redundancy and reliability.
Installation and Construction:
Three-Axis Adjustment: Provides pan, tilt, and rotate adjustments for optimal positioning.
Environmental Resistance: Engineered to withstand outdoor conditions and potential vandalism attempts.
The Double Dome camera merges dual high-resolution sensors with intelligent detection capabilities and robust construction, making it an ideal choice for areas requiring detailed coverage with minimal false alarms. Its comprehensive features and durability ensure reliable surveillance in both indoor and outdoor settings.
IPC3224SS-ADF28K-I1
Key Features:
Dual 4MP Cameras: Incorporates two 4MP, 1/3.0" CMOS sensors in a single device for comprehensive coverage.
Multiple Resolutions: Supports up to 4MP at 25/20fps for high-resolution video capture.
Intelligent Perimeter Protection: Both channels are equipped with advanced detection capabilities including cross line, intrusion, and area entry/exit monitoring.
Target Classification: Reduces false alarms by accurately distinguishing between human, motor vehicle, and non-motor vehicle movements.
People Flow Counting: Available on Channel 1, enabling crowd density monitoring and people counting for statistical analysis.
High Dynamic Range: 130dB WDR offers clear imaging in varied light conditions.
Audio Capabilities: Features built-in microphones for audio recording.
Storage Options: Supports up to 256GB Micro SD cards for extensive local storage.
Durability: Boasts IP67 weatherproof and IK10 vandal resistance ratings, suitable for challenging environments.
Flexible Powering: Can be powered via DC12V or PoE (IEEE 802.3af) for easy installation.
Camera Specifications:
Sensors: Dual 1/3.0", 4.0 megapixel, progressive scan CMOS sensors for detailed imagery.
Low-Light Performance: Colour sensitivity as low as 0.002 lux (F1.6, AGC ON) ensures performance in near-darkness.
Wide Dynamic Range: 130dB WDR for balancing contrasts in varied lighting.
Lens Choices: Available with 2.8mm or 4.0mm lenses, providing wide or narrow fields of view.
Video and Imaging:
Advanced Compression: Offers Ultra 265, H.265, H.264, and MJPEG codecs for efficient storage and bandwidth usage.
Customisable Viewing: Allows up to 8 OSDs and 4 privacy masks per channel for tailored monitoring and recording.
Network and Integration:
Protocols and Compatibility: Supports a wide range of protocols for integration into existing systems.
Storage Flexibility: Edge storage via Micro SD cards and network storage options for redundancy and reliability.
Installation and Construction:
Three-Axis Adjustment: Provides pan, tilt, and rotate adjustments for optimal positioning.
Environmental Resistance: Engineered to withstand outdoor conditions and potential vandalism attempts.
The Double Dome camera merges dual high-resolution sensors with intelligent detection capabilities and robust construction, making it an ideal choice for areas requiring detailed coverage with minimal false alarms. Its comprehensive features and durability ensure reliable surveillance in both indoor and outdoor settings.
Camera Shape
- Multi Dome
Category
- IP Cameras
Colour
- White
Lens
- 2.8mm
Manufacturer
- Uniview
Megapixel
- 4MP + 4MP
Product Type
- IP Camera
Range
- Prime 1
Technology
- Ai
- IK10
- IP67
- Microphone
Wired / Wireless
- Wired
