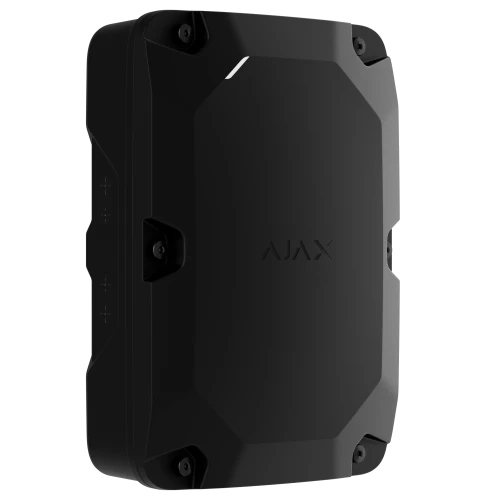

Ajax Case E (395)
Case E gives you a clean way to run an Ajax hub with an internal battery on sites where conditions are tougher or power is unreliable. It works indoors or outdoors, protects the kit from dust and moisture, and gives you room for high capacity batteries when you need a fully autonomous setup.
It is built for remote and off grid locations where mains power is unavailable. Paired with Hub BP Jeweller, you can build a self contained system that keeps running through outages, making it useful for construction sites, temporary setups, rural properties, and anywhere you need long lasting backup power.
It also suits Grade 3 environments. With any Ajax Grade 3 certified hub, Case E helps you meet compliance while keeping the equipment protected from impact, dust, and weather. Industrial units, logistics centres, and exposed installs all benefit from the added resilience.
The casing is IP65 rated with IK08 impact protection. Installers get a simple fit thanks to the built in bubble level, clear cable routing, and a tamper that triggers on lid opening or detachment. You can reuse the enclosure after dismantling or changing the configuration, which helps on jobs that evolve over time.
Compatible hubs- Hub BP Jeweller (without casing)
- Ajax Superior Hub Hybrid (4G) (without casing)
- Ajax Superior Hub Hybrid 2 (without casing)
- Ajax Superior MegaHub (without casing)
- Internal battery NB 7.2 V 95 Ah
- Internal battery RB 6.4 V 36 Ah
- Internal battery NB 7.2 V 190 Ah
- Internal battery RB 6.4 V 78 Ah
- Supports selected third party batteries subject to size.
- Colour: white or black
- Dimensions: 395 x 300 x 108 mm
- Protection class: IP65
- Impact protection: IK08
- Operating temperature: minus 25 to plus 55 degrees Celsius
- Operating humidity: up to 95 percent
- Black
