Superior MultiTransmitter Fibra
Wired module to integrate up to 18 third-party devices into an Ajax system

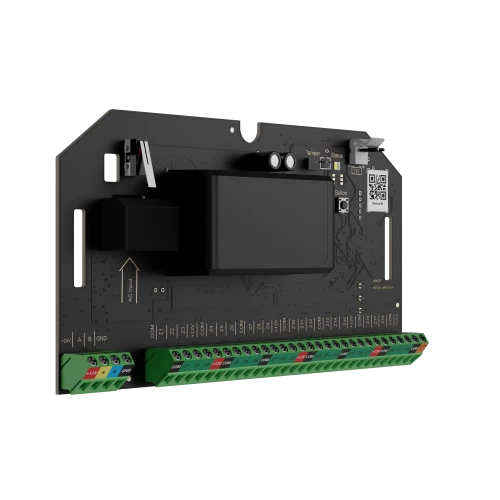

Superior MultiTransmitter Fibra (without casing) as a board compatible with Case D (430)
The second life of an old wired alarm
Superior MultiTransmitter Fibra transforms almost any wired security device into a part of the Ajax ecosystem. Breathe new life into outdated equipment and connect devices outside the Ajax portfolio to create a smart security system for projects of any complexity.
Integrated devices benefit from everything that both users and security companies love about Ajax: in-app security control, automation scenarios, informative notifications, video surveillance integration, and more.
Key features
- 18 zones for connecting third-party detectors
- Two operating modes for pulse and bistable devices
- Time-efficient installation thanks to automatic EOL resistance measuring
- Instant detection of wired connection loss for EOL-connected devices
- All connection types supported NO, NC, EOL, 2EOL, 3EOL
- Numerous event types for connected devices
- Intrusion Panic button
- Fire KeyArm Zone
- Four 12 V power supply outputs one for a fire detector and three for other devices
- Fibra wired communication
- Power adjustment
- Encryption TDMA
- Two-way communication
- Up to 400 m 1,300ft of wired connection between devices and the integration module
- Zero power consumption from the Fibra line
- Remote control and configuration
- Two colors
- Two power supply options powering by the mains or a backup power supply
- Up to 2,000 m 6,550 ft of communication with an Ajax hub² or a module that extends the Fibra line
- Informative push notifications
- EN 50131 (Grade 3)
- PD 6662:2017
- INCERT for Superior MultiTransmitter Fibra (in casing)
- SSF NFA2P for Superior MultiTransmitter Fibra (in casing)
