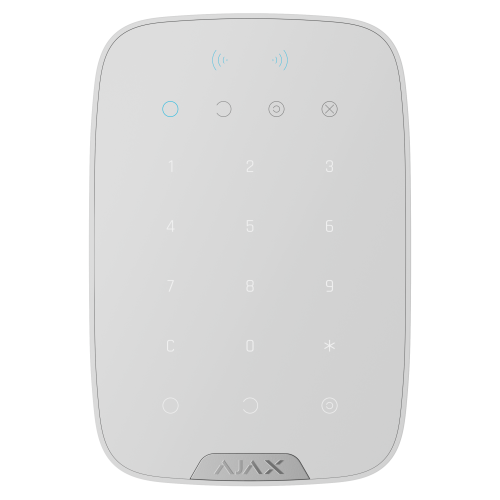

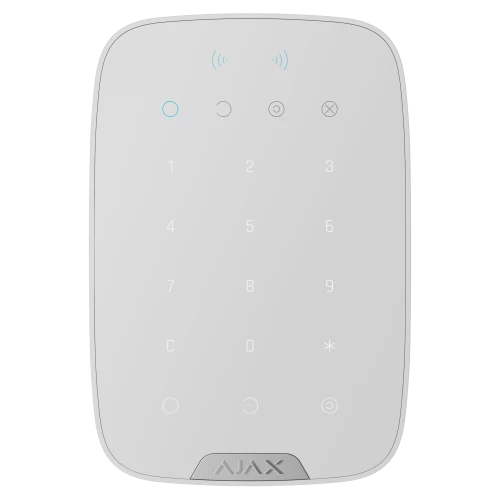

Ajax Superior KeyPad Plus G3 Jeweller
Superior KeyPad Plus G3 gives you a Grade 3 certified keypad with both contactless control and full code based arming options. It suits commercial sites where you need reliable access control and a simple way for staff to arm or disarm the system without compromising security.
You can use Pass cards and Tag fobs for quick contactless access, or enter personal codes. The device supports codes for registered users, codes for unregistered users, and RRU codes for installers or responders. You also get duress codes along with a keypad based panic button.
Communication runs on Superior Jeweller with encrypted long range signalling. Radio supports four frequency bands and a communication range up to 3,500 metres in open space. Device authentication, regular polling, and frequency hopping keep things stable on busier sites.
It installs on SmartBracket without opening the enclosure and joins the system by scanning a QR code. You can configure it fully through the Ajax apps. Power comes from six pre installed AA batteries with an estimated life of up to 4.5 years depending on settings. The enclosure is available in white or black and rated for indoor use.
Key points- Grade 3 keypad for intrusion and access control
- Contactless control with Pass cards and Tag fobs
- Personal codes, unregistered user codes, RRU codes
- Duress codes and a keypad panic button
- Superior Jeweller encrypted communication
- Range up to 3,500 metres in open space
- Up to 4.5 years battery life on six AA batteries
- SmartBracket installation and QR code pairing
- White or black housing, 165 x 113 x 20 mm
- White
