Ajax Superior KeyPad TouchScreen G3 Jeweller

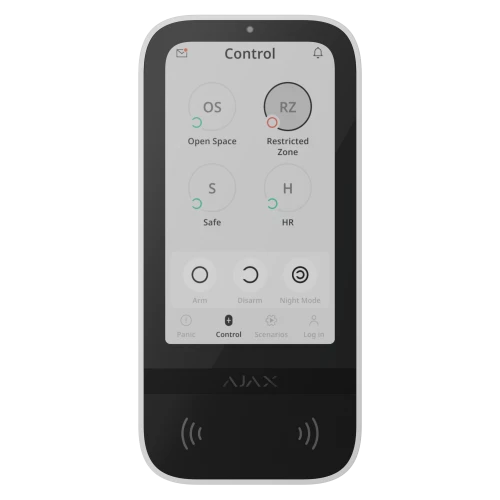

Superior KeyPad TouchScreen G3 is a Grade 3 touchscreen keypad built for sites that need higher security with easier day to day control. The 5 inch IPS display gives users a clear way to arm, disarm, manage groups, and control automation devices without relying on the app. Sound and LED indication help users understand system status instantly, and the keypad shows recent system events so people always know what happened last.

It supports three authentication methods: Pass cards or Tag fobs, smartphones over BLE, and personal codes. Up to 50 smartphones and 50 contactless devices can be enrolled, which helps on busier commercial jobs. The keypad also activates automatically when a user brings a hand close to it, which keeps the screen clean and cuts unnecessary power use.

The touchscreen is protected against scrapes and scratches, with automatic brightness adjustment based on room lighting. You can switch between black and white UI themes. The interface supports 32 languages, which helps when you are installing on multilingual sites.

Communication runs on both Superior Jeweller and Wings, with a radio range up to 3,500 metres in open space. Device authentication, polling, and frequency hopping protect against spoofing, interference, and jamming.

Emergency handling is stronger than on a standard keypad. You get auto locking after code guessing attempts, duress code support, protection against unauthorised authentication, and three dedicated emergency buttons for panic, fire, and auxiliary alerts. Fire alarm indication and a mute option appear directly on the screen.

Sabotage protection includes a rear tamper, a holding screw in the SmartBracket, and detection of attempts to copy cards or codes. The keypad installs without opening the enclosure, pairs by QR code, and can be powered either by pre installed batteries or an optional 12 volt DC supply. Battery life is up to 1.5 years depending on configuration.

• Grade 3 touchscreen keypad
• 5 inch IPS display, 480 x 854 px
• Pass, Tag, smartphone BLE, and code authentication
• Up to 50 smartphones and 50 contactless devices
• Group and Night mode control, plus automation toggles
• Chime support, entry and exit indication, system event log
• Auto lock after code guessing
• Duress codes and dedicated panic, fire, and auxiliary buttons
• Superior Jeweller and Wings communication
• Range up to 3,500 metres in open space
• Sabotage protection and jamming resistance
• Up to 1.5 years battery life or external 12 V supply
• Black or white housing
