Bosch PIR Motion Detector

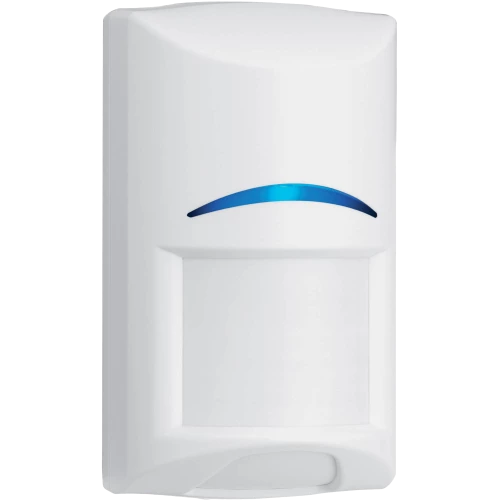

Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector

The Bosch ISC-BPR2-W12 is a wired Blue Line Gen2 PIR motion detector for professional intruder alarm systems where you need reliable internal movement detection without overcomplicating the install. It gives you 12 m x 12 m coverage from a wall-mounted detector and uses Bosch First Step Processing, dynamic temperature compensation and wall-to-wall coverage to help maintain dependable detection in normal residential, office and small commercial environments. The 9-15 VDC supply range, low 10 mA typical current draw, removable terminal block and integrated level make it installer-friendly for new systems and service replacements.

Key features:

• Wired passive infrared motion detector for intruder alarm systems
• 12 m x 12 m detection coverage with 94 degree field of view
• First Step Processing to analyse motion and reduce false alarms
• Dynamic temperature compensation for more consistent detection
• Wall-to-wall coverage with look-down zone
• 9-15 VDC operating voltage with around 10 mA typical current draw
• Recommended mounting height of 2.2 m to 2.75 m
• EN50131 Grade 2, environmental class II, with cover tamper protection
