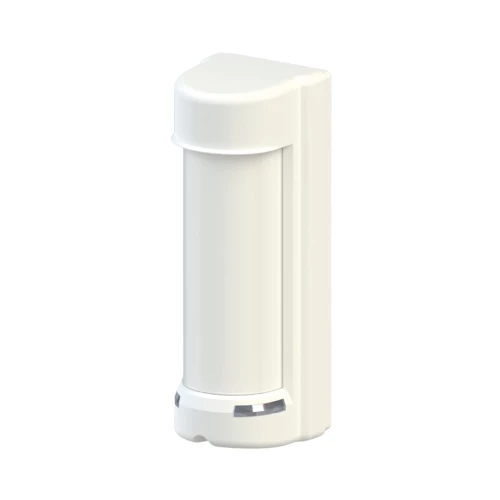

TAKEX Dual Zone Outdoor PIR
TAKEX MX-12FAM is a 180-degree dual-zone PIR detector for outdoor perimeter and low-level intrusion detection. It helps cover wide approach areas such as forecourts, yards, shopfronts, car parks and building perimeters, while reducing nuisance alarms through dual-zone detection and adjustable masking. The MX-12FAM offers 2-12 m coverage, infrared anti-masking with near-lens awareness, front and back tampers, stowable area masks and dual alarm outputs that can be configured per side or as a combined output for CCTV or ancillary devices.
Key features:
- 180-degree dual-zone PIR detection
- Adjustable 2-12 m coverage
- Designed for wide outdoor perimeter detection
- Infrared anti-masking with near-lens awareness
- Stowable area masks for changing detection patterns
- Front and back tamper protection
- Dual alarm outputs for left/right zones or combined output
- External output for CCTV or ancillary device triggering
- 1 m mounting height
- 9-28 V DC operation
- Low current consumption around 30 mA
- Pole mounting accessories available
