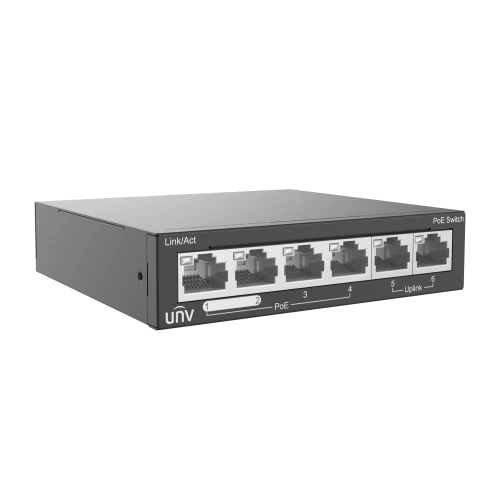

Uniview NSW2020-6T-POE-IN-V2 4 Port PoE + 2 Uplink Switch
The Uniview NSW2020-6T-POE-IN-V2 is a compact unmanaged PoE switch designed specifically for small IP CCTV and edge network installations. It provides four 100Mbps PoE ports plus two uplink ports, letting you power cameras through the same cable that carries data and connect the group back to the NVR or main switch. Surveillance mode supports extended transmission up to 250 metres where suitable, while secure mode can isolate downlink ports so camera traffic communicates only through the uplinks, helping you deliver a cleaner and safer customer installation.
Key features:
- 6-port unmanaged PoE switch with 4 PoE ports and 2 uplinks
- 100Mbps RJ45 ports suitable for small IP CCTV deployments
- IEEE 802.3af/at PoE support with up to 30W per PoE port
- 65W maximum PoE capacity for connected devices
- EXTEND / surveillance mode supports up to 250m transmission where appropriate
- Secure mode isolates downlink ports so they communicate only with uplinks
Manufacturer
- Uniview
Ports
- 6
