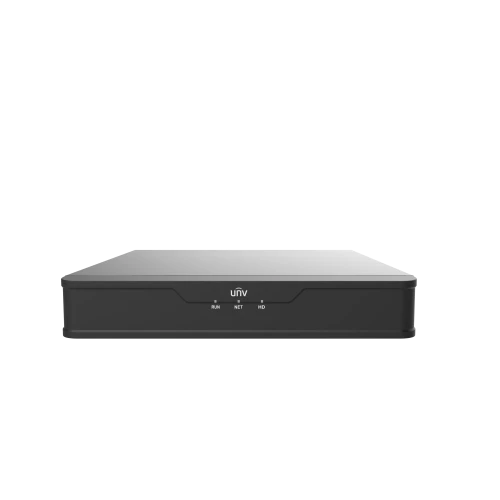

XVR301-G3 Series
Digital Video Recorders
The XVR301-G3 Series DVRs are versatile and powerful recording solutions designed to accommodate a diverse range of video surveillance needs. These DVRs support a wide variety of camera types, including TVI, AHD, CVI, CVBS, and IP cameras, providing flexibility in system configuration and expansion. The series includes models XVR301-04G3 for smaller setups and XVR301-08G3 for larger operations.
Key Features:
Compatibility: Supports H.265/H.264 video formats for efficient storage and clear video quality.
Diverse Camera Support: Adaptable access for TVI, AHD, CVI, CVBS, IP cameras, enhancing system versatility.
Audio Over Coaxial: Available for TVI cameras, enabling audio signals over the same coaxial cable as video.
High-Definition Output: Offers 1-ch HDMI and 1-ch VGA outputs at resolutions up to 1920*1080 for crisp, clear display.
Long Transmission: Ensures reliable signal quality over extended coaxial cable distances.
ONVIF and RTSP Support: Facilitates integration with mainstream cameras, ensuring compatibility across devices.
Model-Specific Features:
XVR301-04G3:
4-channel BNC input.
Supports 2-ch IP video input, up to 6 channels in total, each channel up to 4MP.
Analog camera support up to 5MP at various frame rates.
1 SATA interface for up to 8TB HDD capacity.
XVR301-08G3:
8-channel BNC input.
Supports 4-ch IP video input, up to 8 channels in total, each channel up to 4MP.
Varied frame rate support for AHD, TVI, CVI inputs.
1 SATA interface, accommodating up to 8TB per HDD.
Network and Storage:
Incoming Bandwidth: 16Mbps for XVR301-04G3 and 32Mbps for XVR301-08G3, expandable for all-analog channel conversion.
Outgoing Bandwidth: 48Mbps for XVR301-04G3 and 64Mbps for XVR301-08G3, supporting large-scale remote access.
Remote Users: Up to 128 concurrent users.
Snapshot and Live View Features: Include scheduled snapshots (not supported) and multi-channel live view display capabilities.
Encoding and Decoding:
Recording Resolutions: Offering a range of resolutions from CIF up to 5MP Lite, depending on the model.
Decoding Capabilities: Designed to handle various resolutions for both analog and IP streams.
Intelligent Features:
Smart Alarm: Includes ultra motion detection (UMD) for analog channels, along with general and alert alarms for comprehensive event monitoring.
VCA Detection and Search: Enhance security with behaviour search and motion detection features.
Connectivity and Construction:
External Interfaces: Feature 1 RJ45 Ethernet interface, 2 USB 2.0 ports for easy data management and device interaction.
Durability and Design: Crafted with a compact and durable chassis, these DVRs are designed for long-lasting, reliable operation in various environments.
The XVR301-G3 Series DVRs stand out for their adaptability, high-quality recording, and support for multiple camera types, making them suitable for a wide range of surveillance applications. Whether for small businesses or larger premises, these DVRs offer a solid foundation for a robust security system.
Digital Video Recorders
The XVR301-G3 Series DVRs are versatile and powerful recording solutions designed to accommodate a diverse range of video surveillance needs. These DVRs support a wide variety of camera types, including TVI, AHD, CVI, CVBS, and IP cameras, providing flexibility in system configuration and expansion. The series includes models XVR301-04G3 for smaller setups and XVR301-08G3 for larger operations.
Key Features:
Compatibility: Supports H.265/H.264 video formats for efficient storage and clear video quality.
Diverse Camera Support: Adaptable access for TVI, AHD, CVI, CVBS, IP cameras, enhancing system versatility.
Audio Over Coaxial: Available for TVI cameras, enabling audio signals over the same coaxial cable as video.
High-Definition Output: Offers 1-ch HDMI and 1-ch VGA outputs at resolutions up to 1920*1080 for crisp, clear display.
Long Transmission: Ensures reliable signal quality over extended coaxial cable distances.
ONVIF and RTSP Support: Facilitates integration with mainstream cameras, ensuring compatibility across devices.
Model-Specific Features:
XVR301-04G3:
4-channel BNC input.
Supports 2-ch IP video input, up to 6 channels in total, each channel up to 4MP.
Analog camera support up to 5MP at various frame rates.
1 SATA interface for up to 8TB HDD capacity.
XVR301-08G3:
8-channel BNC input.
Supports 4-ch IP video input, up to 8 channels in total, each channel up to 4MP.
Varied frame rate support for AHD, TVI, CVI inputs.
1 SATA interface, accommodating up to 8TB per HDD.
Network and Storage:
Incoming Bandwidth: 16Mbps for XVR301-04G3 and 32Mbps for XVR301-08G3, expandable for all-analog channel conversion.
Outgoing Bandwidth: 48Mbps for XVR301-04G3 and 64Mbps for XVR301-08G3, supporting large-scale remote access.
Remote Users: Up to 128 concurrent users.
Snapshot and Live View Features: Include scheduled snapshots (not supported) and multi-channel live view display capabilities.
Encoding and Decoding:
Recording Resolutions: Offering a range of resolutions from CIF up to 5MP Lite, depending on the model.
Decoding Capabilities: Designed to handle various resolutions for both analog and IP streams.
Intelligent Features:
Smart Alarm: Includes ultra motion detection (UMD) for analog channels, along with general and alert alarms for comprehensive event monitoring.
VCA Detection and Search: Enhance security with behaviour search and motion detection features.
Connectivity and Construction:
External Interfaces: Feature 1 RJ45 Ethernet interface, 2 USB 2.0 ports for easy data management and device interaction.
Durability and Design: Crafted with a compact and durable chassis, these DVRs are designed for long-lasting, reliable operation in various environments.
The XVR301-G3 Series DVRs stand out for their adaptability, high-quality recording, and support for multiple camera types, making them suitable for a wide range of surveillance applications. Whether for small businesses or larger premises, these DVRs offer a solid foundation for a robust security system.
