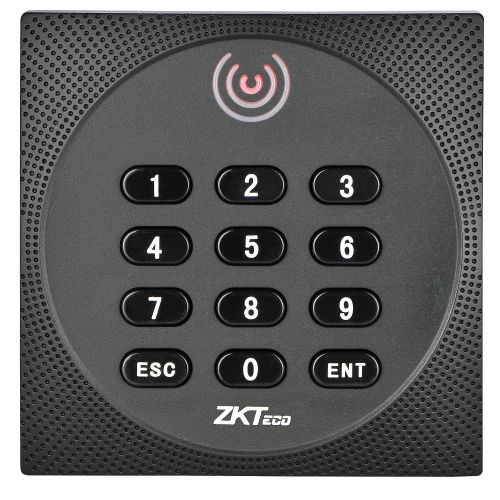

ZKTeco KR612D Mifare DESFire Reader with Keypad
The ZKTeco KR612D is a square external reader and keypad for access control systems using 13.56 MHz Mifare or DESFire credentials. It gives you card and PIN input from the same unit and supports Wiegand output, making it useful for doors where you need stronger credential flexibility than a simple 125 kHz prox reader. The IP65 housing, 12 V DC supply, surface or recessed mounting options and 86 x 86 x 20 mm format make it a practical reader for offices, apartment entrances, staff doors and other controlled access points.
Key features:
- 13.56 MHz Mifare / DESFire card reader with keypad
- Supports card and PIN access methods
- Wiegand 34 / 66-bit output with PIN output support
- RS485 communication support on compatible systems
- 12 V DC supply
- IP65-rated housing for indoor or outdoor installations
- Surface or recessed mounting options
- 86 x 86 x 20 mm body with -10 degrees C to 55 degrees C operating temperature range
