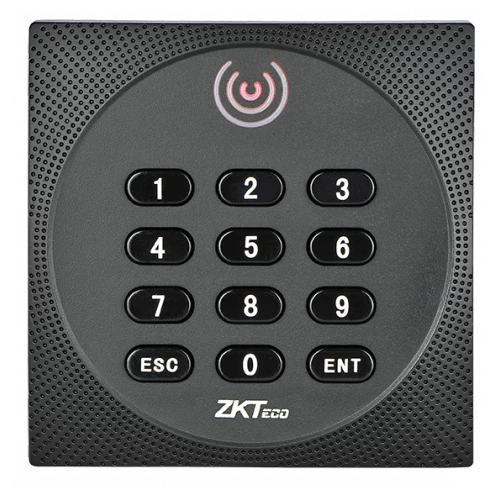

ZKTeco KR614-OSDP Dual-Frequency Reader with Keypad
The ZKTeco KR614-OSDP is a dual-frequency RS485 / OSDP reader with keypad, giving you card and PIN capability for Atlas, inBio and other compatible ZKTeco access control systems. It supports both 125 kHz EM and 13.56 MHz credentials, so you can specify one reader for sites with mixed card technologies or a phased credential upgrade. The keypad gives customers an additional PIN entry option, while the IP64 square housing, LED/buzzer feedback and 6-14 V DC operating range make it easy to install on offices, apartment entrances, staff doors and shared access points.
Key features:
- Dual-frequency 125 kHz and 13.56 MHz RFID reader with keypad
- RS485 / OSDP communication for compatible ZKTeco systems
- Card and PIN capability from one reader
- Read range up to 10 cm for 125 kHz cards and up to 5 cm for 13.56 MHz cards
- Reading time below 300 ms
- IP64-rated ABS+PC housing
- 6-14 V DC supply with maximum 70 mA current draw
- 86 x 86 x 20 mm body with red/green LED and buzzer feedback
Category
- Readers
Manufacturer
- ZKTeco
Product Type
- Reader
Range
- Atlas & InBio
